Xuchang Huarui AUTO 560 Reifenrecyclingmaschine

**Used Recycling Line for rubber products– Model AUTO‑560 (Automatic)

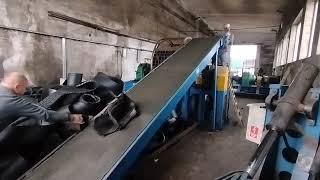

This is a fully automatic **AUTO‑560** rubber recycling production line by Xuchang Huarui. It processes whole rubber products into clean rubber powder, removing steel and fiber through integrated separation stages. The machines were purchased in 2013 and used only sporadically over a 5-year period for small-scale production of rubber for our own use. As a result, they remain in good condition with low overall wear.

It is ideal for processing tartan and rubber surfaces, as well as SBR and EPDM products.

Total price: 130,000 EURO, no additional fees or taxes. This is the total sum to be paid.

FOR MORE INFO CALL 0048 663 684 514
0048 726 852 245

? What’s Included ?

All machinery required for a complete recycling process is included:

1. **Hydraulic Tire Debeader**

* Pulls steel bead wire from tire edges
* Capacity: ~30-40 tires/hour; Power: 11 kW

2. **Hydraulic Whole-Tire Cutter**

* Cuts tires into 3-4 smaller slices
* Power: 11 kW; Pressure: ~12 T; Capacity: 30–40 tires/hour

3. **Tire Shredder (TS‑1000 equivalent)**

* Shreds slices into ~50×50 mm rubber blocks
* Throughput: 2-4 Tons/h; Power: ~45×2 + 4 + 1.5 kW; Weight: 12 T

4. **Rubber Crusher / XKP‑560 Roller Mill**

* Further refines blocks into 5–40 mesh powder
* Front roller: Ø560 mm; Rear roller: Ø510 mm; Drum length: 800 mm
* Roll speed: 40.6 m/min; Roll ratio: 1 : 2.5; Max spacing: 10 mm
* Motor power: 75–90 kW; Machine weight: approx. 17.5 T; Dimensions: 5.3×2.0×1.7 m

5. **Magnetic & Fiber Separators + Conveyors & Screens**

* Automatically remove steel and textile
* Multi-stage screening ensures final purity of rubber powder

---

### ⚙️ Performance & Specifications
Model: AUTO-560

Output Capacity:

900–1000 kg/h at 10 mesh

600–800 kg/h at 20 mesh

300–350 kg/h at 40 mesh
(Output depends on mesh size selected)

Final Product: Rubber granules or powder (10–40 mesh)

Voltage: 380V, 50Hz, 3-phase (customizable for buyer region)

Motor Power:

Rubber Crusher: 75–90 kW

Tire Shredder: 45 kW × 2

Debeader and Cutter: 11 kW each

Main Crusher Rollers:

Front roller diameter: 560 mm

Rear roller diameter: 510 mm

Roll length: 800 mm

Speed ratio: 1:2.5

Linear speed: 40.6 m/min

Max roller spacing: 10 mm

Certifications: CE certified

Expected Service Life: 15+ years with proper maintenance

Line Weight (approx.):

Rubber Crusher: ~17.5 tons

Shredder: ~12 tons

Cutter: ~1.5–1.8 tons

Debeader: ~1.8 tons

Footprint: Suitable for mid- to large-scale recycling facilities

Separation System: Magnetic and fiber separation included for steel and textile removal

Operation: Fully automatic with conveyors and integrated controls




✅ Key Benefits

**Full-line automation**: minimal manual handling from rubber products intake to rubber powder output
**High throughput**: up to 20 T/day at coarser mesh
**Integrated separation**: steel wires and textile removed to ensure purity
**Robust build**: heavy-duty rollers (alloy steel 5Cr6MnMo), anti-friction bearings, hydraulic systems
**Turnkey solution**: includes screeners, magnets, conveyors—ready for immediate operation


? **Condition**: Used but fully operational


If you’re looking for a reliable, high-capacity used rubber recycling line with proven performance, this **AUTO‑560** offers an excellent turnkey solution. Please contact me for detailed pricing, shipping costs, and to schedule an inspection.


We also have on offer: A tyre re-treading line, and a line to manufacture tyre threads. Please contact us for further information.
